Nobough Sarmayesh Refrigeration Solutions
Cold Room Sandwich Panels
An integrated insulated solution for chilled and frozen cold rooms, featuring a rigid polyurethane core, precise joints and multiple thickness options to reduce heat transfer.
1,000 mm
Effective Width
50–150 mm
Thickness Range
40 ± 2 kg/m³
Nominal Density
Chilled and Frozen
Application Range
Improved Heat-Transfer Control in Cold Environments

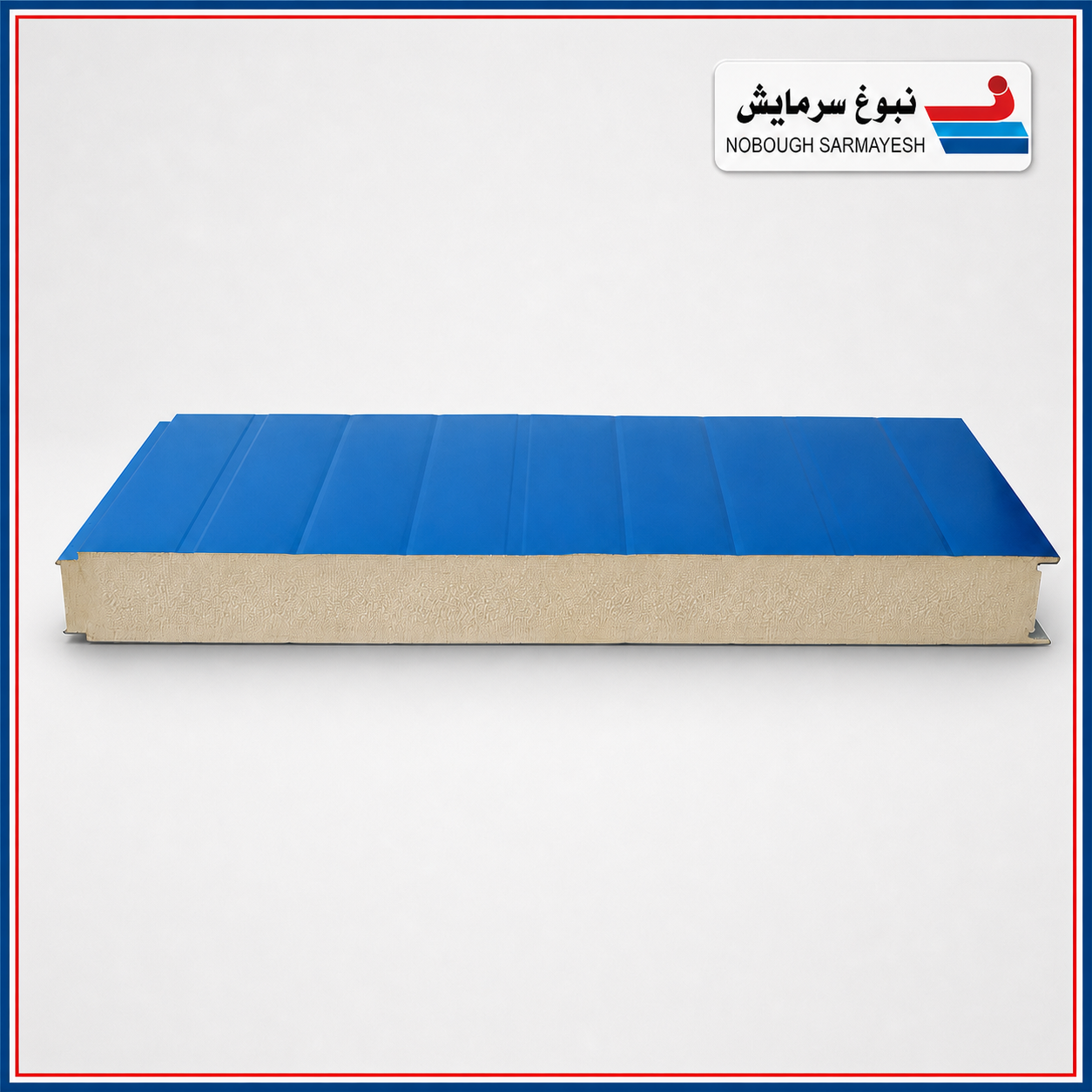

Nobough Sarmayesh cold room sandwich panels consist of a continuous rigid polyurethane core bonded between two metal sheets and are designed to limit heat gain in temperature-controlled spaces.
Cold-room performance depends on selecting the correct thickness, precisely sealing joints and properly completing wall, ceiling, floor and opening connections.

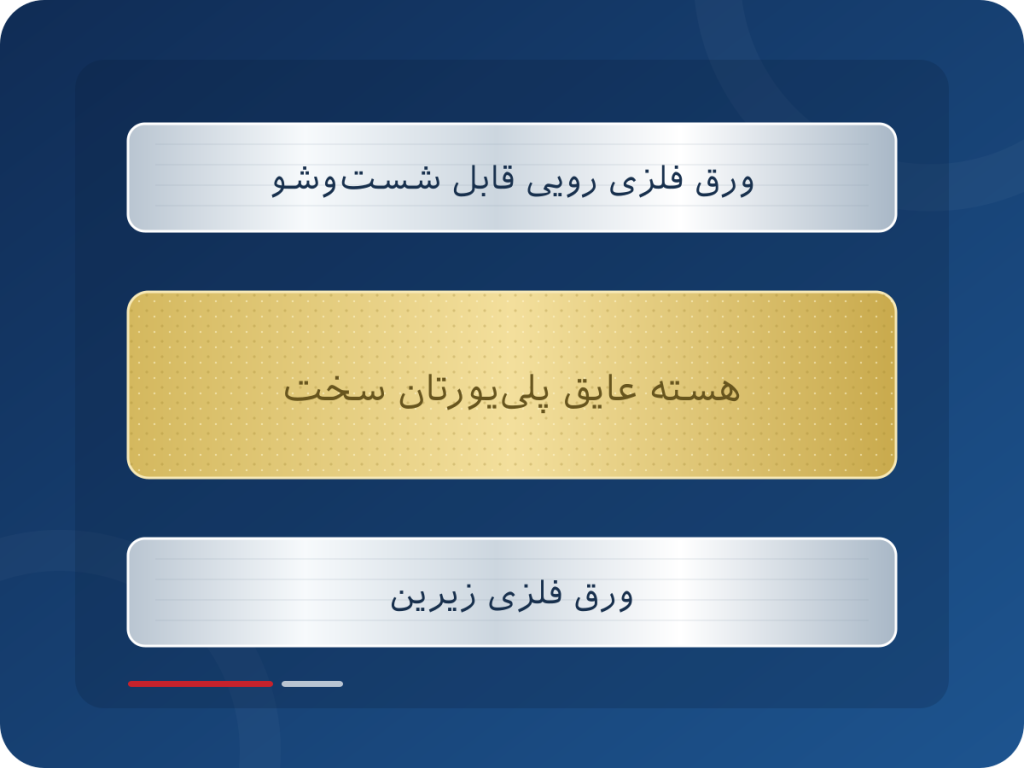

- Washable Outer Metal Sheet
- Rigid Polyurethane Insulation Core
- Inner Metal Sheet
Product Benefits
Engineered Performance for Industrial Projects
A combination of installation quality, speed and compatibility with the project’s technical requirements.
Effective Thermal Insulation
The insulation core limits heat transfer between the surrounding environment and the cold room.
Integrated Jointing
Precise joints help reduce unwanted gaps and improve enclosure continuity.
Multiple Thickness Options
Thickness is selected according to operating temperature and project conditions.
Lightweight
Low weight simplifies transport and installation of the cold-room structure.
Fast Installation
Production to project dimensions reduces preparation and installation time.
Easy Cleaning
Coated surfaces are suitable for routine cleaning.
Applications
Versatile Project Applications
Product selection and installation details must be matched to the intended application.
Chilled Cold Rooms
Frozen Cold Rooms
Blast Freezing Tunnels
Food Industry
Fruit and Vegetable Storage
Pharmaceutical Industry
Temperature-Controlled Rooms
Cold Chain
Technical Information
Cold Room Sandwich Panel Specifications
The specifications below are based on the product catalogue. Final values for each order are confirmed after project review.
Product Type
Cold Room Sandwich Panel
Insulation Core
Rigid Polyurethane
Effective Width
1,000 mm
Available Thicknesses
50–150 mm
Nominal Density
Approx. 40 ± 2 kg/m³
Joint Type
Sealable Joint
Panel Length
Made to Project Requirements
Application
Chilled and Frozen
Important Selection and Installation Note
Final specifications must be approved before production.
Target temperature, climate, room dimensions, door-opening frequency and stored products must be considered when selecting thickness and sealing details.
Product Options
Selected to Match Project Requirements
Option availability and final specifications are confirmed when placing the order.
50
mm
60
mm
75
mm
100
mm
125
mm
150
mm
Frequently Asked Questions
Cold-room applications require greater attention to insulation thickness, joint continuity and control of air and vapor infiltration.
The suitable thickness depends on target temperature, climate, room dimensions, door-opening frequency and operating conditions. It should be confirmed by the technical team.
The effective panel width is 1,000 mm.
Yes. They can be used for cold-room walls and ceilings when the product specification and installation details are properly selected.
Price depends on panel thickness, sheet type and coating, dimensions, total area, order volume and delivery requirements.
Need More Precise Calculations for Your Cold Room?
Share your project information with the Nobough Sarmayesh technical team so the appropriate solution can be reviewed.
